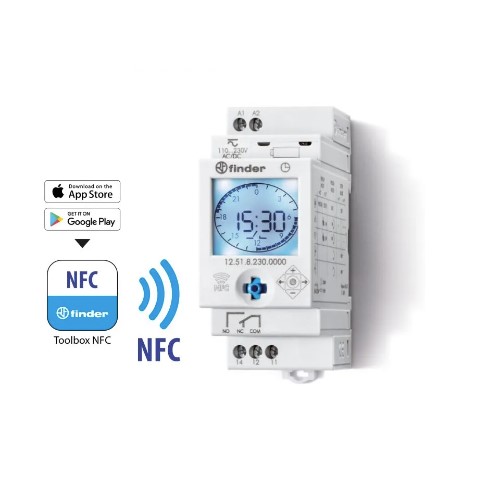

Programmkell Finder 12.51, 1 kanal, 1CO, 230VAC/DC, 50mk, 24h/7p

– Electronic time relay, multifunction, multiscale, multivoltage
– Enabling input
– 1 relay output with 1 changeover contact (SPDT)
– Selectable functions: (a) On delay; delay on make with start at relay energising. (b) Pulse on relay energising with start when energised. (c) Flasher starting with OFF interval. Equal timing recycle. (d) Flasher starting with ON interval. Equal timing recycle. (e) Off delay; relay energising at external contact closing with start on break. (f) Pulse on relay energising with start on external contact closing. (g) Pulse on relay energising with start on external contact opening. (h) On-off delay. Delay on make, with start at external contact closing, and delay at break, with start at external contact opening. (i) Internal ON/OFF trigger with relay contact closing or operating at each closing of an external contact. (j) Pulse generator, unequal timing recycle; starting with OFF pulse time and 0.5s ON pulse.
– Delay time adjustable on front by rotary switch: 10…100%
– Green LED indicator for power on
– Red LED indicator for relay state; flashing for delay and steady when relay energised
– Modular DIN 43880 housing, 1 module suitable for fixing on 35mm DIN rail (IEC/EN 60715)
– IEC degree of protection: IP40 on front (only when mounted in housing or electric board with IP40); IP20 on terminals.
